Shield Segment Mould
Custom segment moulds for ring diameters from 2 to 27 m, built around the customer’s ring geometry and plant layout.
- Mould weight
- 3–20 t
- Minimum order
- 1 set
- Ring diameter
- Custom, 2–27 m
Equipment catalogue
Equipment built around the segment production process
Compare mould, transfer, automation and inspection equipment, then send the drawings and layout behind your project.
Segment Moulds
Custom shield segment moulds for precast tunnel rings.
Transfer and Power
Ferry cars, power systems and mother-daughter trolleys for segment lines.

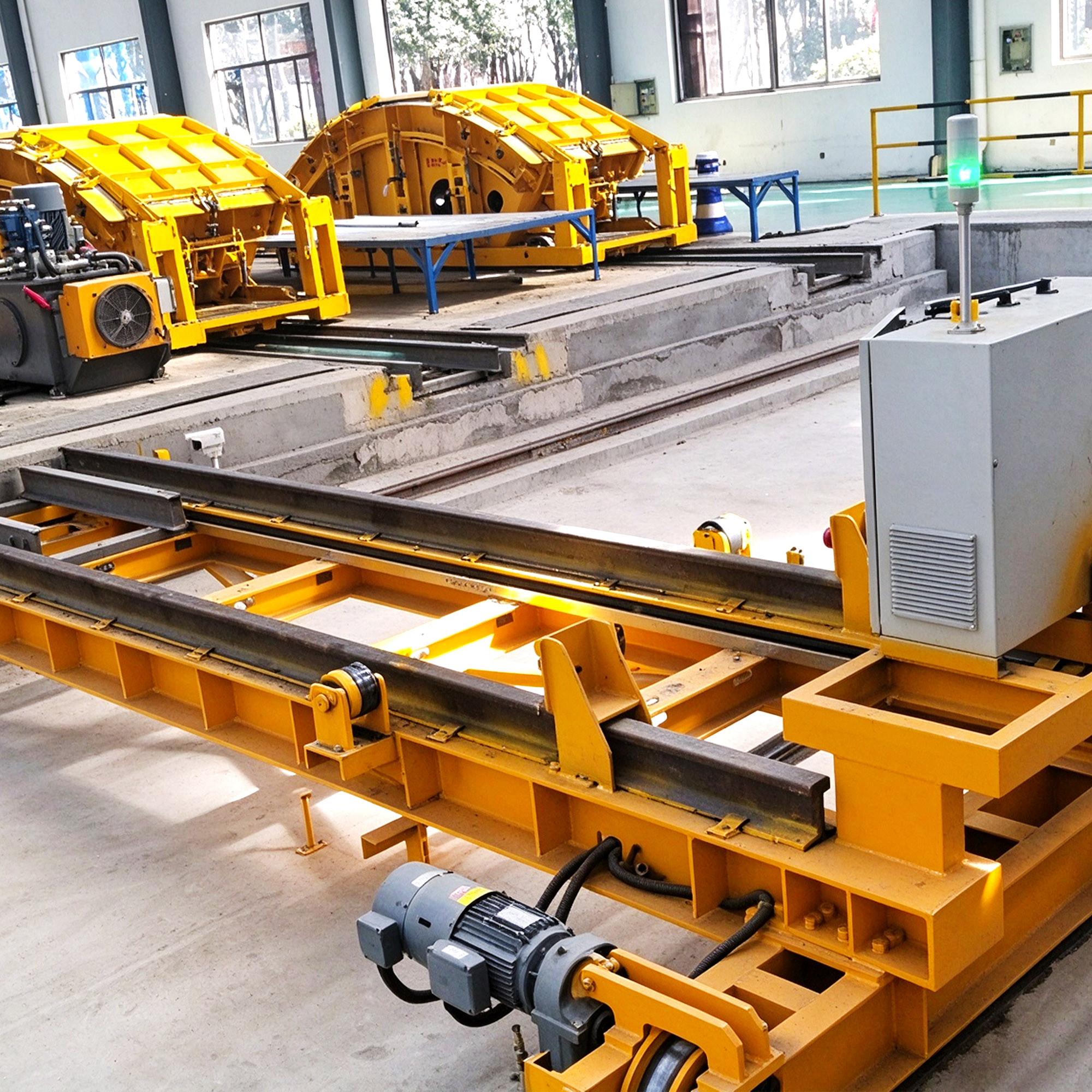

Ferry Car
Rail-guided transfer equipment for moving moulds between positions on a segment production line.
- Size options
- 4.5 / 5 / 5.5 / 6 m
- Minimum order
- 2 units
- Weight options
- 2.2 / 2.5 / 2.8 t

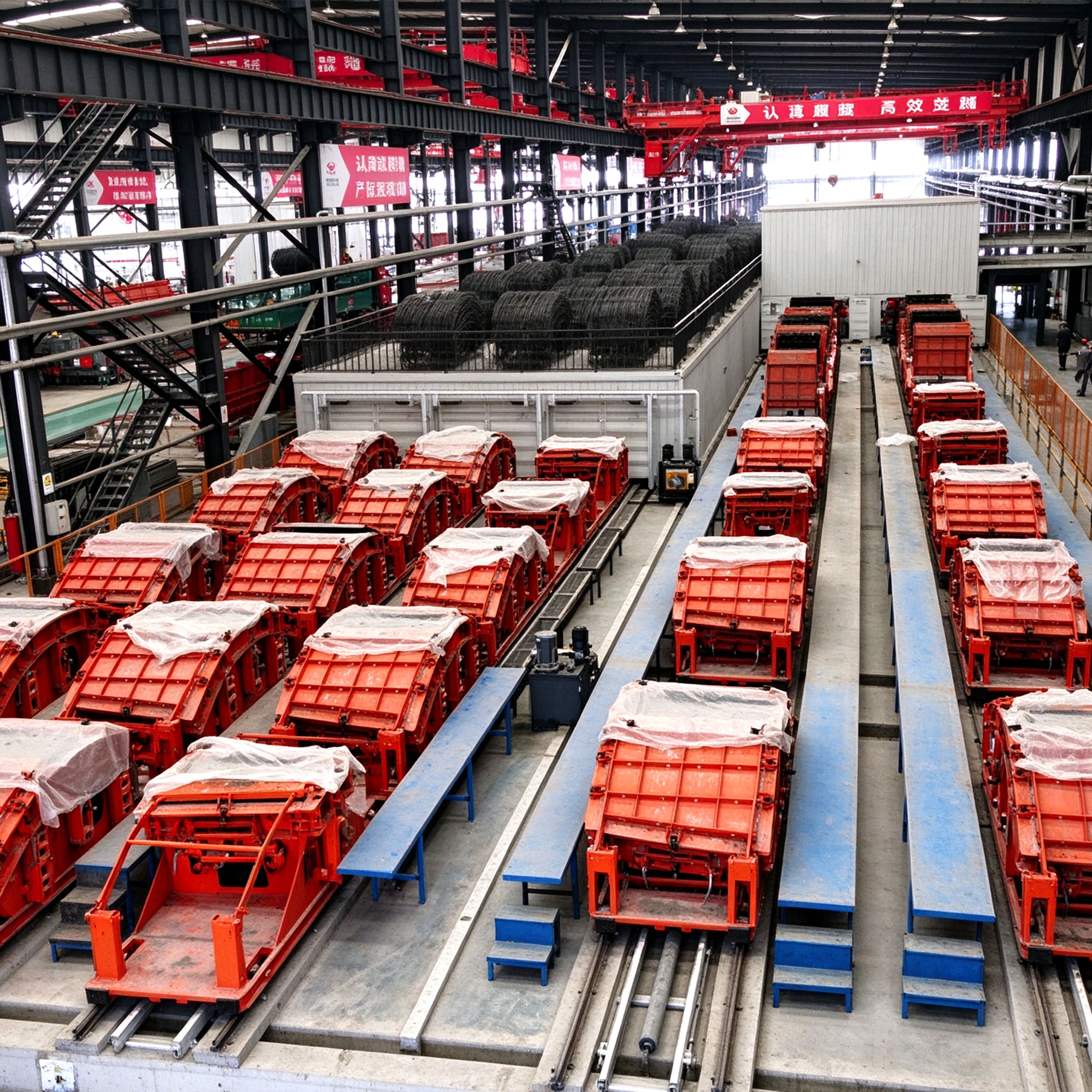

Power System
Power equipment configured with the transfer layout of an automated segment production line.
- Weight
- 40–60 t
- Size options
- 80 / 90 / 100 / 110 / 120 m, customisable
- Minimum order
- 1 set

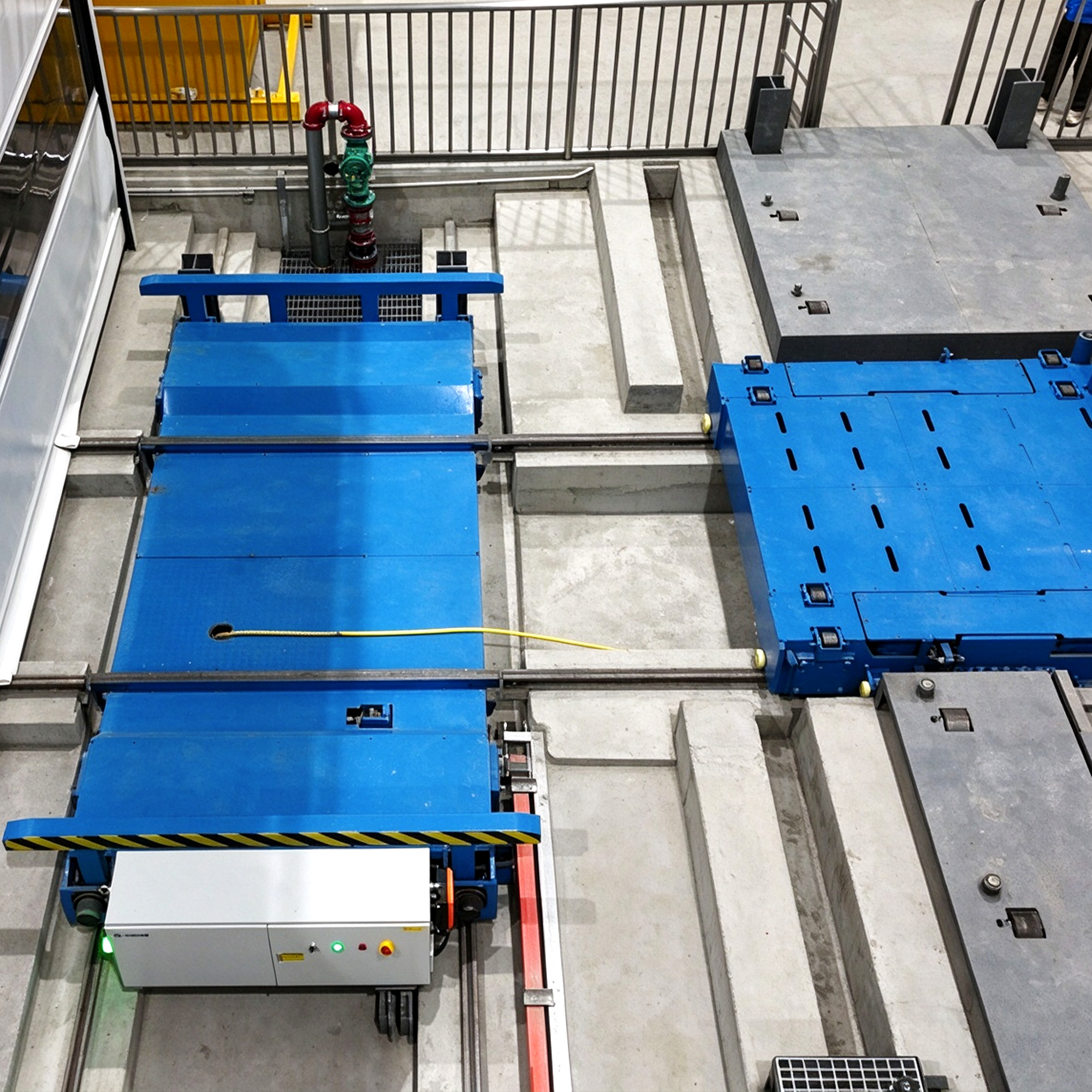

Mother-Daughter Trolley
Paired trolley arrangement for moving segment moulds between track positions.
- Size options
- 4.5 / 5 / 5.5 / 6 m
- Minimum order
- 2 units
- Weight options
- 3 / 3.5 / 4 / 4.5 t
Robots and AGV
Heavy-duty AGVs and intelligent robots for automated handling and mould-side tasks.

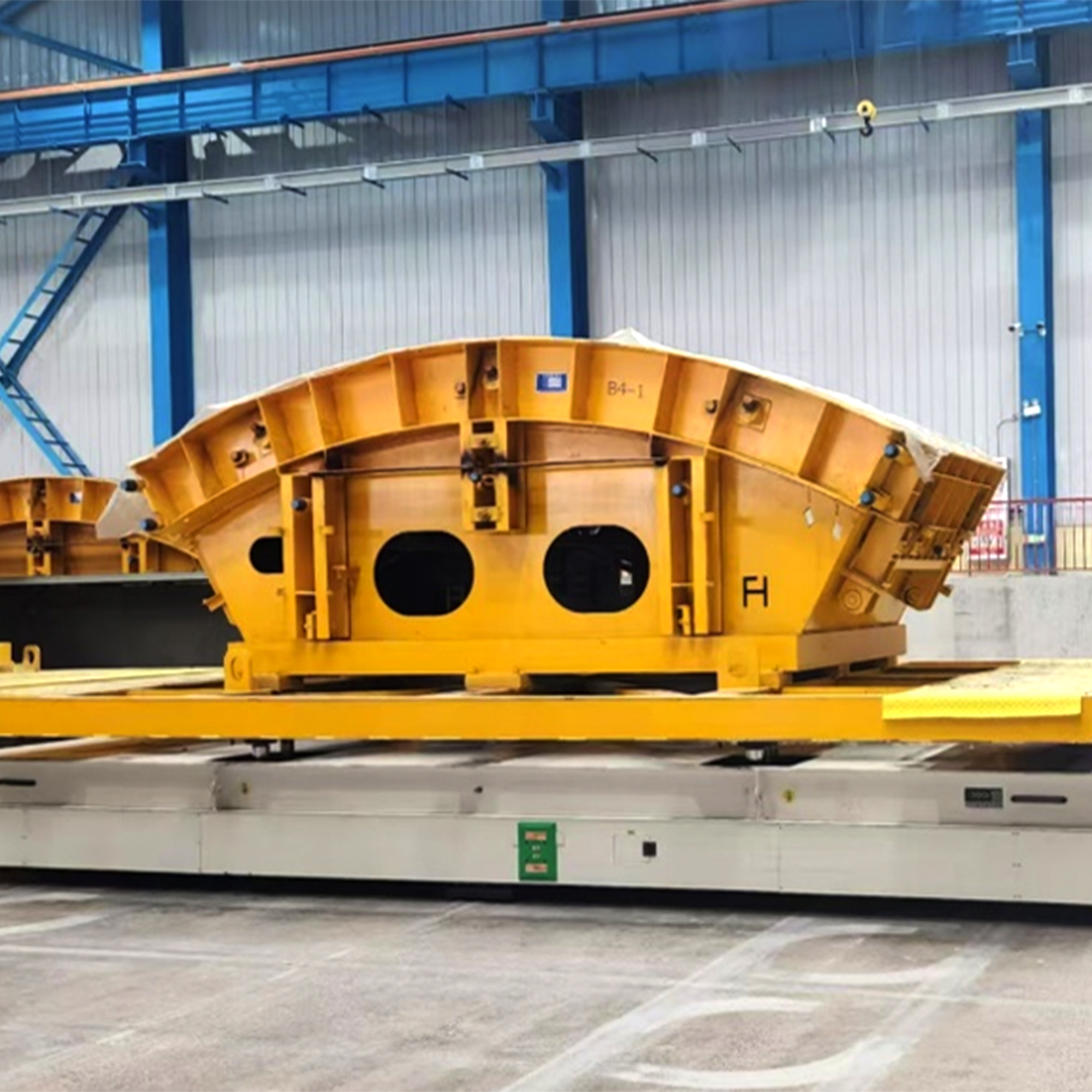

Heavy-Duty AGV
Automated guided vehicle for carrying heavy mould loads across the workshop floor.
- Weight
- 10–20 t
- Size options
- 5 / 6 m, customisable
- Minimum order
- 3 units
Intelligent Robot
Robot for mould opening and closing, cleaning, release-agent spraying and surface finishing.
- Tasks
- Opening and closing, cleaning, spraying, surface finishing
- Minimum order
- 1 unit
Inspection Equipment
Equipment for segment bending, impermeability, pull-out and ring assembly tests.
Tell us about your tunnel project
Send the ring diameter, equipment scope and target timeline. Our engineers reply to every RFQ with the questions needed to scope your quotation.
